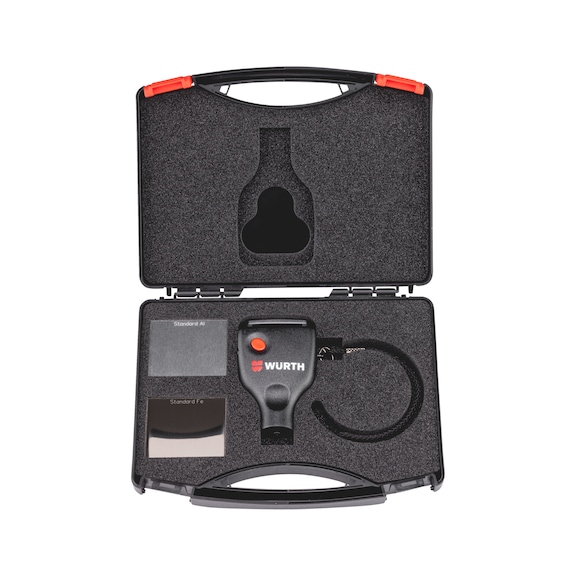

Layer thickness measuring instrument, combination
Fully electronic layer thickness measuring instrument for determining coatings (e.g. paintwork, corrosion protection layer thicknesses)
Register now and access more than 2,000 products
Variants
Register now and access more than 2,000 products
- One-hand operation with multi-function key
- Automatic substrate switchover
Reliable, fast measurements with no calibration
- Manual substrate switchover by user also possible
- High measuring accuracy over entire measuring range
- Broad range of applications thanks to dual probe (steel, iron and non-ferrous metals such as aluminium, zinc, copper and brass)
- Compact design with integrated sensor
- Long-term use with gentle measurement thanks to polished ruby measuring heads
- Innovative technology: Hall sensors and eddy current technology
- Acoustic signal on start of measurement
- Automatic switch-on/switch-off
- Graphic LCD display with backlight indicates measured value, battery state, measuring unit and operating mode
- Measurement display approx. 15 seconds
Measuring range (FE/N Fe)
0–3000 μm (μm/mils switching)
Measuring time increment
Individual measurement: 600 ms
Measurement display
From 0.0–999 in µm, from 1000 µm in mm
Smallest measuring surface
10 x 10 mm
Smallest curvature radius
- Convex: 5 mm
- Concave: 25 mm
Smallest thickness of base material
- Fe: 0.2 mm
- N Fe: 0.05 mm
Measurements on plastics are not possible
On steel and iron (ferromagnetic metals) and non-magnetic metals, e.g. aluminium, zinc, copper or brass
